ניאגרה סמויה נמוכה בלוקים פתח חזית או עליון
ניאגרה סמויה נמוכה בלוקים פתח חזית או עליון




ניאגרה נמוכה לבלוקים
גובה התקנה 820 מ"מ
*התקנת לחצן חזיתית ו/או עליונה
*מתאים לכל לחצני וייגה.



-for flush plates Visign
-for pre-​wall mounting please order separately: Viega Eco Plus fixing set Model 8173
-flush actuation from front or top, dual flush technology
Components
powder-​coated steel frame, concealed cistern 2L, WC connection elbow DN90 (depth-​adjustable) made of PP, eccentric adapter DN90/100 made of PP, WC connection fitting, fixing material for element (for floor) and ceramic, screws (self-​drilling) for fixing to metal support profiles, hole Ø 11 mm for fixing in wooden frame construction, alignment help
Cistern components
corner valve with pre-​mounted water connection Rp½, filling valve set, drain valve set
Technical data
Partial flush volume factory setting approx. 3 l
Partial flush volume setting range approx. 3–4 l
Full flush volume factory setting approx. 6 l
Full flush volume setting range approx. 6–9 l
Note
Immediate reflushing is possible at the factory settings!
Dependent of the WC ceramic, the open WC lid may partially cover the flush plate while front actuation!
When dealing with WC ceramic with a projection of less than 500 mm, such as e.g.: V & B Viala 765310, Viala 765210, Keramag Renova-​Comprimo 204550, Joly 203060, the WC lid may fall shut, and therefore actuation from top should be applied!
Flush plates and accessories: product group WC and urinal actuation accessories!
Model 8130.2



פריט

תרשים טכני

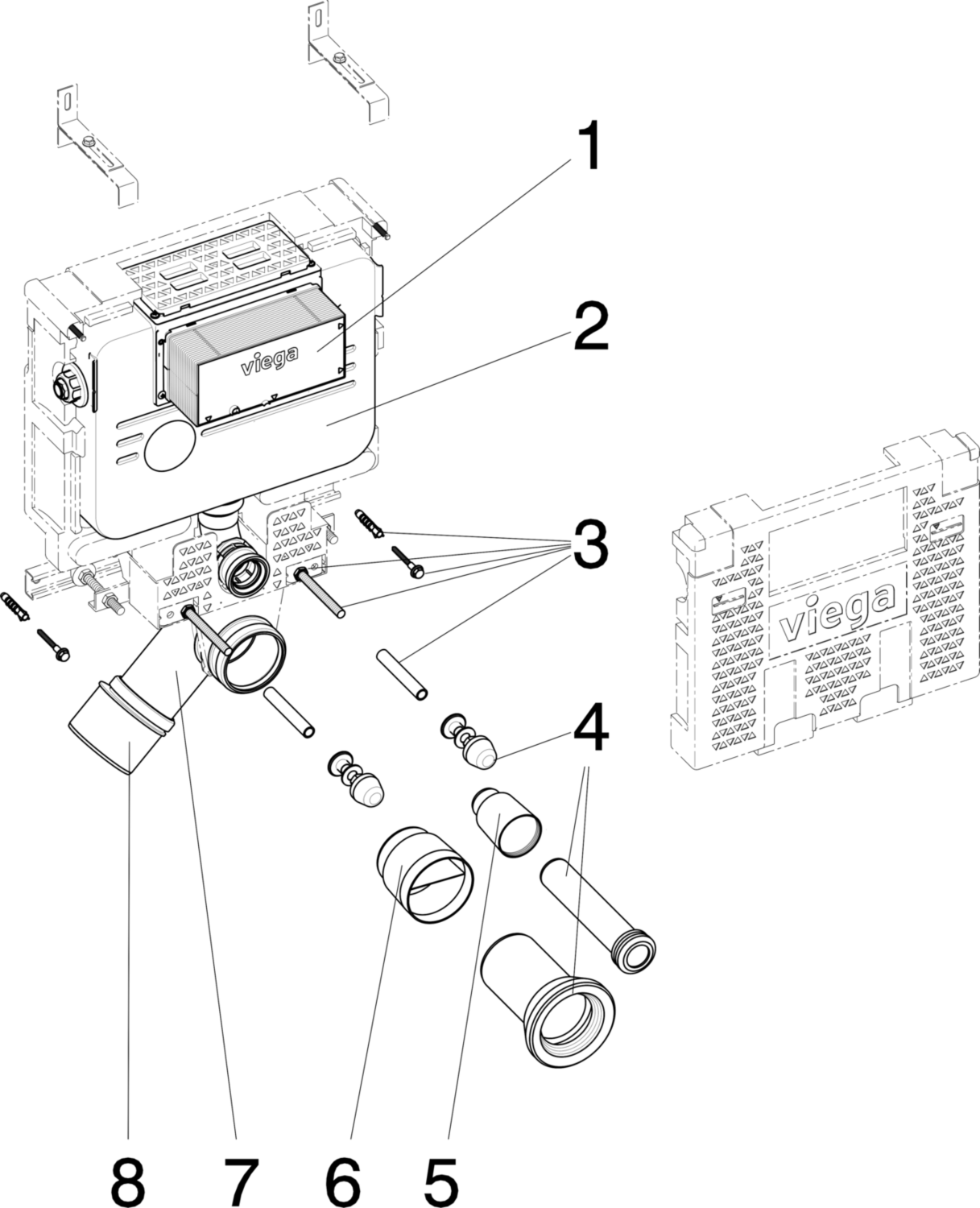

מפרט חלקים
