ניאגרה סמויה לגבס
ניאגרה לקיר גבס אקו.
* מתאימה לכל לחצני הפעלה ויגה.
ניאגרה לקיר גבס אקו.
* מתאימה לכל לחצני הפעלה ויגה.
for WC flush plates Visign for Public 1, Visign for Style 10, 13, 14 and Standard
for pre-wall mounting please order separately: Viega Eco Plus fixing set Model 8173
flush actuation from front, dual flush technology

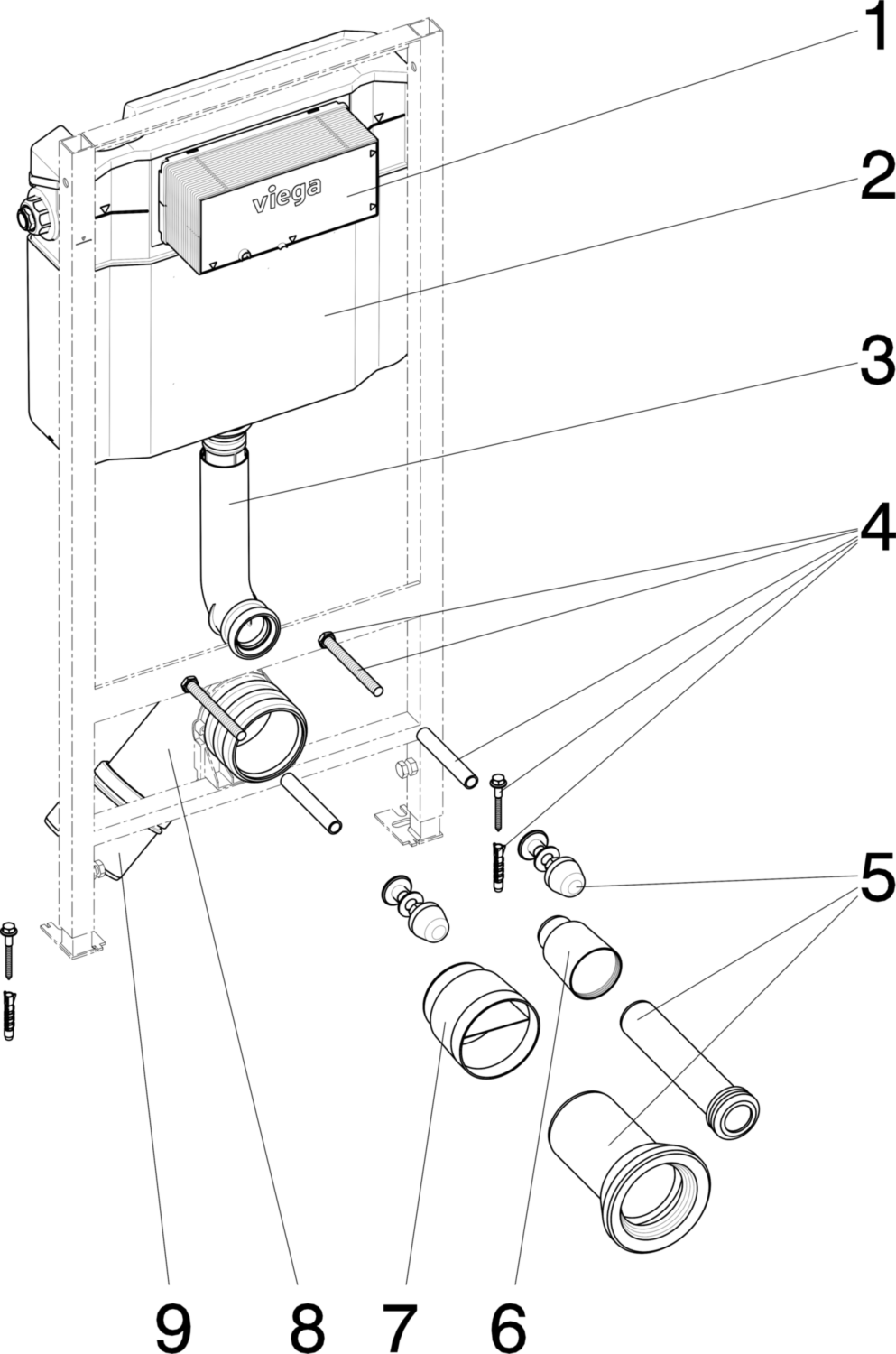

Components
powder-coated steel frame, concealed cistern Standard 2S, WC connection elbow DN90 (depth-adjustable) made of PP, eccentric adapter DN90/100 made of PP, WC connection fitting, fixing material for element (for floor) and ceramic, screws (self-drilling) for fixing to metal support profiles, hole Ø 11 mm for fixing in wooden frame construction
Cistern components
corner valve with pre-mounted water connection Rp½, filling valve set, drain valve set, flushing throttle model 8310.93 (series from 1st quarter 2017)
Technical data
Partial flush volume factory setting approx. 3 l
Partial flush volume setting range approx. 3–4 l
Full flush volume factory setting approx. 6 l
Full flush volume setting range approx. 6–9 l
Note
Immediate reflushing is possible at the factory settings!
Flush plates and accessories: product group WC and urinal actuation accessories!
Model 8180.26
for pre-wall mounting please order separately: Viega Eco Plus fixing set Model 8173
flush actuation from front, dual flush technology
Components
powder-coated steel frame, concealed cistern Standard 2S, WC connection elbow DN90 (depth-adjustable) made of PP, eccentric adapter DN90/100 made of PP, WC connection fitting, fixing material for element (for floor) and ceramic, screws (self-drilling) for fixing to metal support profiles, hole Ø 11 mm for fixing in wooden frame construction
Cistern components
corner valve with pre-mounted water connection Rp½, filling valve set, drain valve set, flushing throttle model 8310.93 (series from 1st quarter 2017)
Technical data
Partial flush volume factory setting approx. 3 l
Partial flush volume setting range approx. 3–4 l
Full flush volume factory setting approx. 6 l
Full flush volume setting range approx. 6–9 l
Note
Immediate reflushing is possible at the factory settings!
Flush plates and accessories: product group WC and urinal actuation accessories!
Model 8180.26
