ניאגרה סמויה לבלוקים מונו
Viega Mono WC block
-for wet construction installation, single mounting, line mounting, flush plates Visign
-in addition optional available flushing pipe elbow Model 8310.78
-flush actuation from front, dual flush technology, can be shortened from 1130–980 mm
Components
concealed cistern 2H, WC connection elbow DN90 made of PP, eccentric adapter DN90/100 made of PP, WC connection fitting, sound insulating EPS casing, fixing material for block and ceramic
Cistern components
corner valve with pre-mounted water connection Rp½, filling valve set, drain valve set, flushing throttle model 8310.93 (series from 1st quarter 2017)
Technical data
Partial flush volume factory setting approx. 3 l
Partial flush volume setting range approx. 3–4 l
Full flush volume factory setting approx. 6 l
Full flush volume setting range approx. 6–9 l
Note
Immediate reflushing is possible at the factory settings!
Flush plates and accessories: product group WC and urinal actuation accessories!
Dependent of the WC ceramic, the WC lid may partially cover the flush plate when open, when using the Visign for More sensitive flush plate this leads to unwanted flush actuation!
Model 8310.2
ניאגרה לבלוקים
גובה התקנה סטנדרט 1130 והתקנה נמוכה 980
מתאים לכל לחצני וייגה
בורג סמוי, צנרת, בורג, צנרת, גבס, צנרת, גבס,
דגם 8310.2
גובה התקנה סטנדרט 1130 והתקנה נמוכה 980
מתאים לכל לחצני וייגה
בורג סמוי, צנרת, בורג, צנרת, גבס, צנרת, גבס,
דגם 8310.2
Viega Mono WC block
-for wet construction installation, single mounting, line mounting, flush plates Visign
-in addition optional available flushing pipe elbow Model 8310.78
-flush actuation from front, dual flush technology, can be shortened from 1130–980 mm
Components
concealed cistern 2H, WC connection elbow DN90 made of PP, eccentric adapter DN90/100 made of PP, WC connection fitting, sound insulating EPS casing, fixing material for block and ceramic
Cistern components
corner valve with pre-mounted water connection Rp½, filling valve set, drain valve set, flushing throttle model 8310.93 (series from 1st quarter 2017)
Technical data
Partial flush volume factory setting approx. 3 l
Partial flush volume setting range approx. 3–4 l
Full flush volume factory setting approx. 6 l
Full flush volume setting range approx. 6–9 l
Note
Immediate reflushing is possible at the factory settings!
Flush plates and accessories: product group WC and urinal actuation accessories!
Dependent of the WC ceramic, the WC lid may partially cover the flush plate when open, when using the Visign for More sensitive flush plate this leads to unwanted flush actuation!
Model 8310.2
פריט

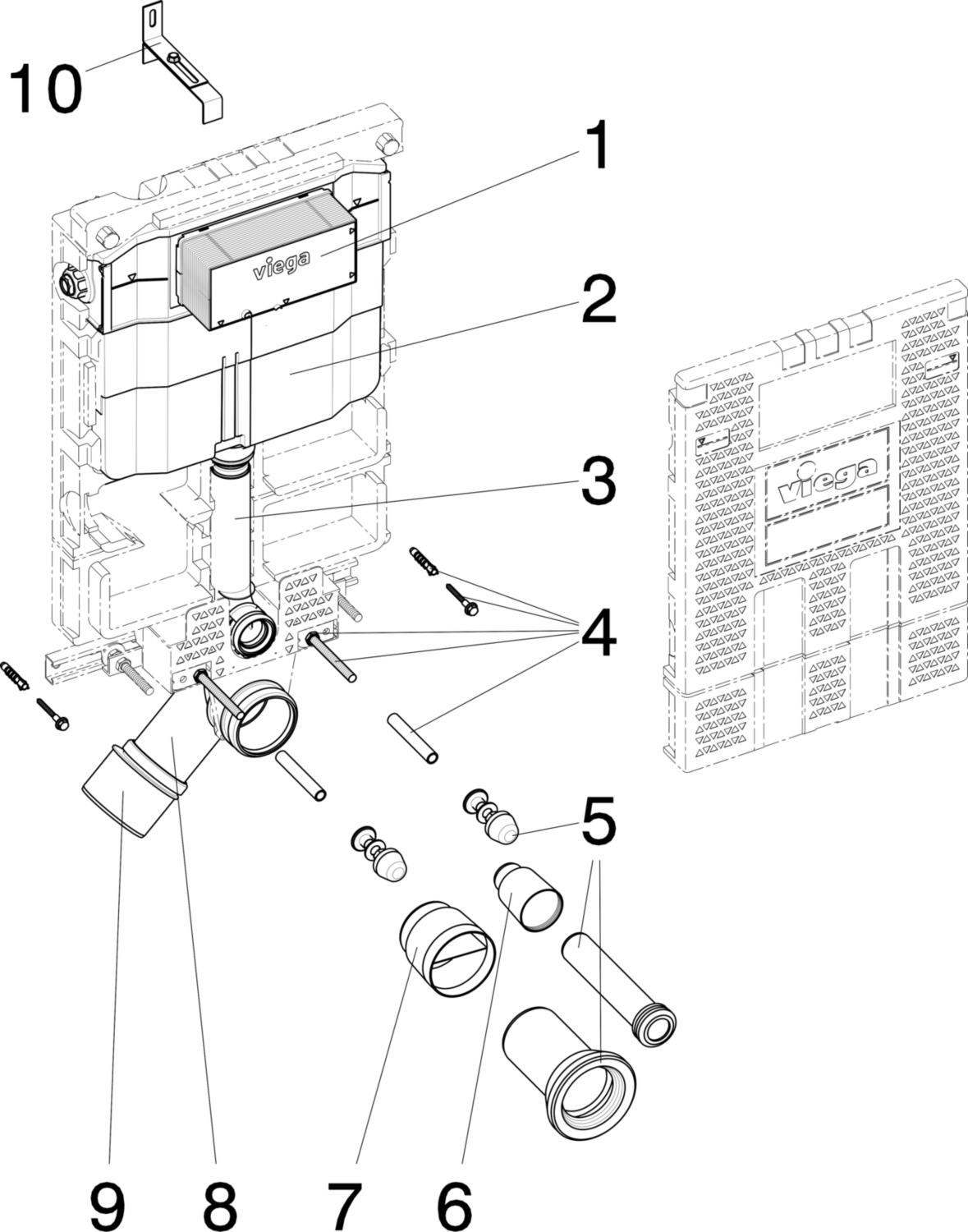

תרשים טכני

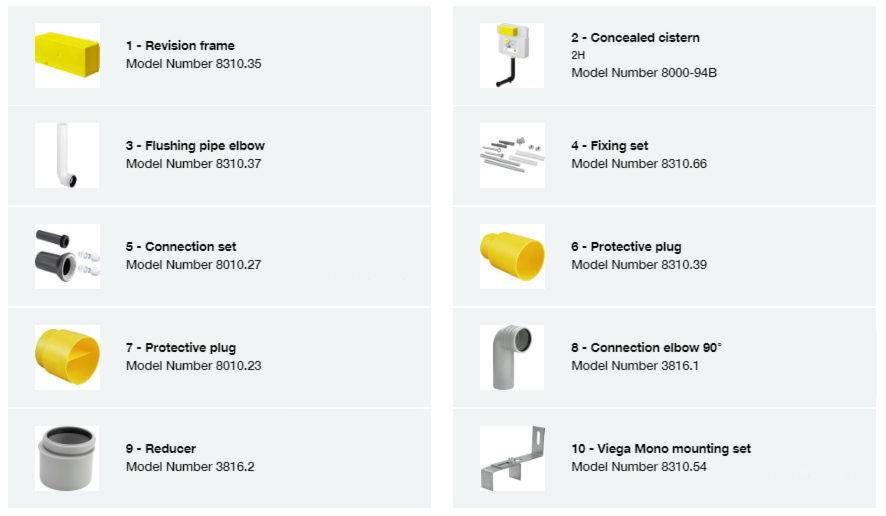

מפרט חלקים
